Balti Tee 2023 · Ülesanne 15

Geomeetria

Let ω1\omega_{1} and ω2\omega_{2} be circles with no common points, such that neither circle lies inside the other. Points MM and NN are chosen on the circles ω1\omega_{1} and ω2\omega_{2}, respectively, such that the tangent to the circle ω1\omega_{1} at MM and the tangent to the circle ω2\omega_{2} at NN intersect at PP and such that PMNP M N is an isosceles triangle with PM=PNP M=P N. The circles ω1\omega_{1} and ω2\omega_{2} meet the segment MNM N again at AA and BB, respectively. The line PAP A meets the circle ω1\omega_{1} again at CC and the line PBP B meets the circle ω2\omega_{2} again at DD. Prove that ∠BCN=∠ADM\angle B C N=\angle A D M.

Muuda valikut

Kui oled valmis

Ülevaatematerjal muutub kättesaadavaks järgmise päevaülesannete komplektiga.

Ülevaade

Teemad

Ringjooned ja puutujad · Kolmnurgad ja märkimisväärsed punktid

Lahendused

Lahendus

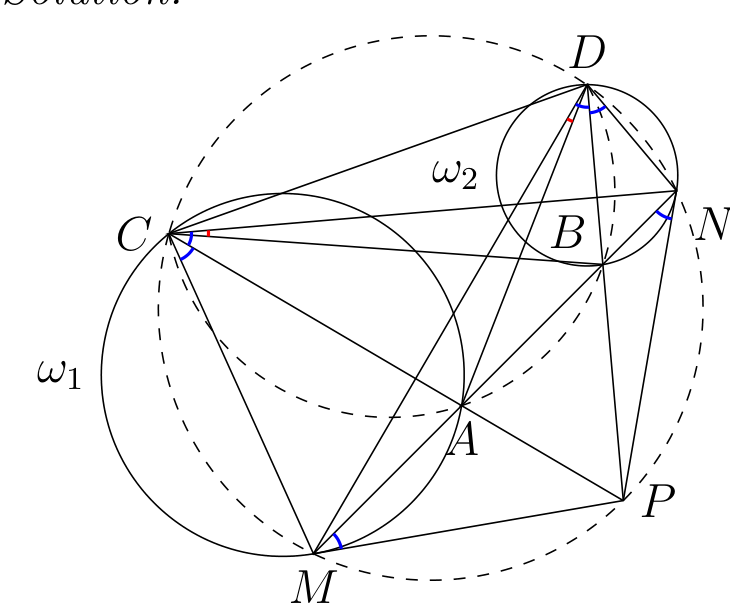

Official solution diagram for Baltic Way 2023 Problem 15.

Since MPNM P N is an isosceles triangle, we have ∠PMA=∠PMN=∠MNP=∠BNP\angle P M A=\angle P M N=\angle M N P=\angle B N P. By tangent and chord theorem, ∠MCA=\angle M C A= ∠PMA=∠BNP=∠BDN\angle P M A=\angle B N P=\angle B D N.

Since ∠MCP=∠MNP\angle M C P=\angle M N P, the quadrilateral CMPNC M P N is cyclic. Analogously, from ∠PDN=∠PMN\angle P D N=\angle P M N, we get that NDMPN D M P is cyclic. Since CC and DD both lie on the circumcircle of NPMN P M, points P,N,M,CP, N, M, C and DD are concyclic.

From inscribed angles subtending arcs with the same length, we get that ∠MDP=\angle M D P= ∠MCP=∠MNP=∠PDN=∠PMN=∠PCN\angle M C P=\angle M N P=\angle P D N=\angle P M N=\angle P C N.

The power of PP with respect to ω1\omega_{1} gives us that PM2=PA⋅PCP M^{2}=P A \cdot P C. The power of PP with respect to ω2\omega_{2} gives us that PN2=PB⋅PDP N^{2}=P B \cdot P D. Since PM=PNP M=P N, the powers of PP with respect to ω1\omega_{1} and ω2\omega_{2} are equal ( PP lies on the radical axis). Hence, PA⋅PC=PB⋅PDP A \cdot P C=P B \cdot P D, which implies that ABDCA B D C is cyclic. From inscribed angles subtending the arc⁡AB\operatorname{arc} A B, we get that ∠ACB=∠ADB\angle A C B=\angle A D B.

Hence, ∠BCN=∠ACN−∠ACB=∠MDB−∠ADB=∠MDA\angle B C N=\angle A C N-\angle A C B=\angle M D B-\angle A D B=\angle M D A.

2nd Solution: Since MPNM P N is an isosceles triangle, we have ∠PMA=∠PMN=\angle P M A=\angle P M N= ∠MNP=∠BNP\angle M N P=\angle B N P. By tangent and chord theorem, ∠MCA=∠PMA=∠BNP=\angle M C A=\angle P M A=\angle B N P= ∠BDN\angle B D N.

Since ∠MCP=∠MNP\angle M C P=\angle M N P, the quadrilateral MPNCM P N C is cyclic, which means that PP lies on the circumcircle of MNCM N C. Since MPNM P N is isosceles, the perpendicular bisector of MNM N passes through PP. Since the intersection point of the angle bisector and the perpendicular bisector of the opposite side of the triangle lies on the circumcircle, it follows that CPC P bisects angle ∠MCN\angle M C N. Hence, ∠MCP=∠PCN\angle M C P=\angle P C N. Analogously, since ∠PDN=∠PMN\angle P D N=\angle P M N, it follows that NDMPN D M P is cyclic and the circumcircle of MNDM N D, the perpendicular bisector of MNM N and the angle bisector of ∠MDN\angle M D N meet at PP. Hence, ∠MDP=∠PDN=∠MCP=∠PCN\angle M D P=\angle P D N=\angle M C P=\angle P C N.

Now we continue as in the previous solution.
